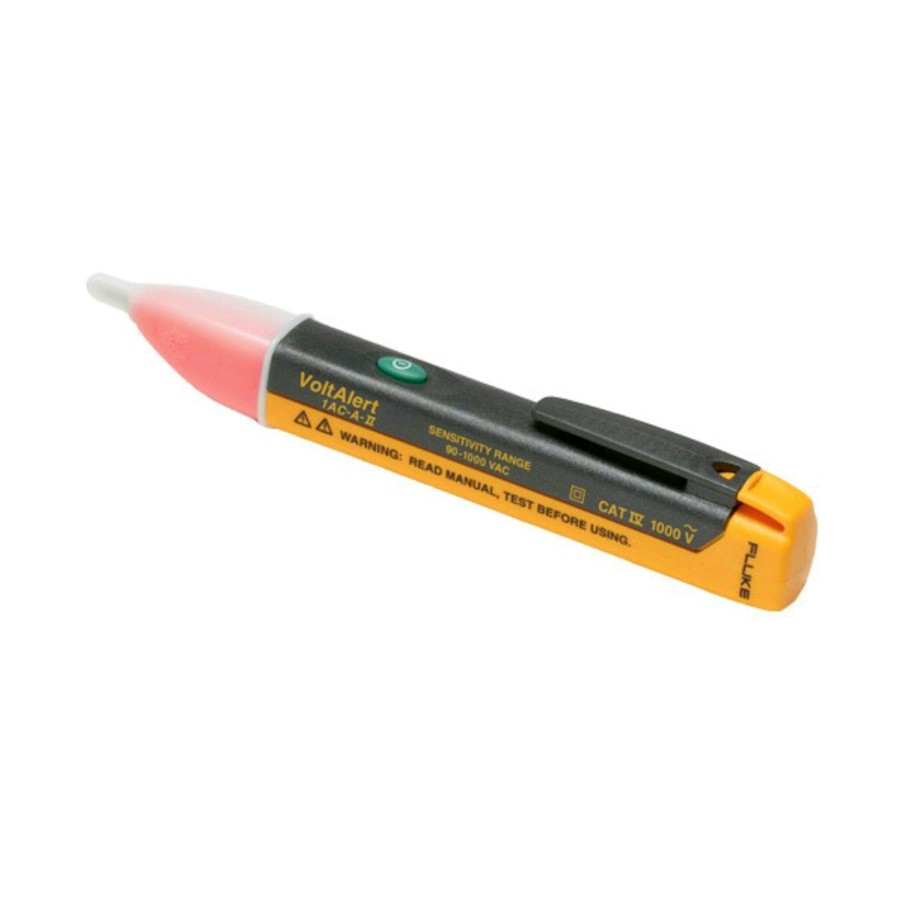

Voltage Detector Fluke I-AC

Masuk untuk melihat harga

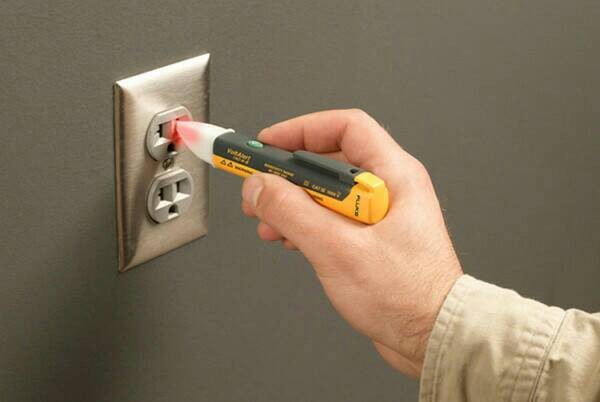

The next generation VoltAlert AC non-contact voltage testers from Fluke are easy to use just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

Features:
Voltbeat technology and continuous self-test so you always know it's working
Upon detection, tip glows and beeper sounds
CAT IV 1000 V for added protection
Expanded range: 90 V AC to 1000 V AC
20 V to 90 V AC control circuit model also available
Batteries included
On/Off Button
Audible/Silent

Specifications
Operating Principles Senses the steady state electrostatic eld produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
Voltage sensing ranges Nominally, 90 V AC to 1000 V AC
Detector tip style Flat-tip
Light source One high intensity red LED
Agency Approvals c CSA us, CE, C-Tick
Safety Rating 1000 V, CAT IV
Safety Compliance Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
EMC Compliance Meets IEC 61326-1:2006
IP Rating IP 40
Operating Temperature -10C to 50C (-14F to 122F)
Operating Humidity Ranges 0% to 95% (0C to 30C)
0% to 75% (30C to 40C)
0% to 45% (40 to 55C)
Operating Altitude 3000 m
Cleaning Clean with damp cloth
